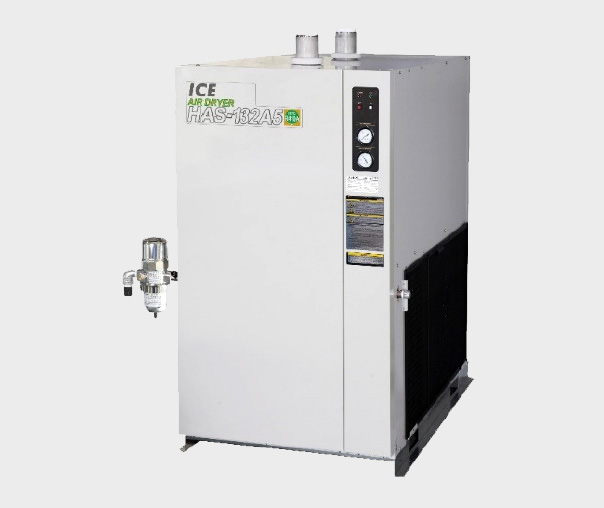

HAS ICE Refrigerated Air Dryer
(Orion Machinery Thailand)
| Air Processing Capacity | 0.54 – 74m3/min |
| Max. Inlet Temp. into dryer | 50°C / 80°C |
| Max. Inlet Pressure into dryer | 1.0MPa |
Air- cooled, Water-cooled model.
| Refrigerant Gas | R134a / R410A / R407C |
| Dew Point | 3 - 15°C Under Pressure |

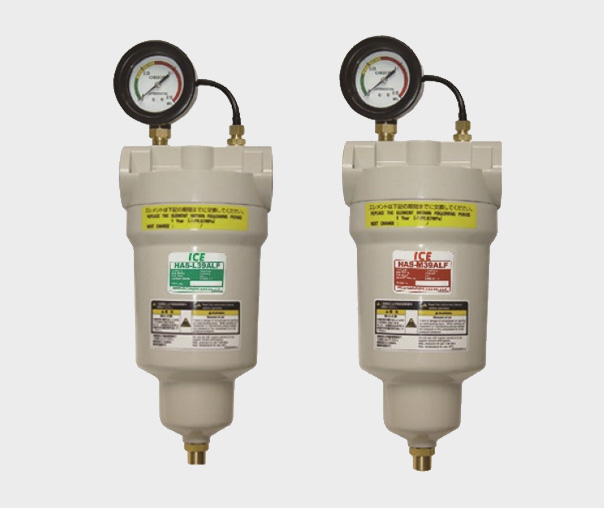

HAS ICE Filters
HAS ICE Drain, Line, Mist, Carbon Filters
| Air Processing Capacity | 0.35 – 80m3/min (@0.69MPa) |
| Casing Material | Aluminum Die Casting |
| Max. Inlet Temp. into filter | 5 - 60°C |
| Max. Inlet Pressure into filter | 1.0MPa |
| Drain filter filtration | 5μm |
| Line filter filtration | 1μm |
| Mist filter filtration | 0.01μm |

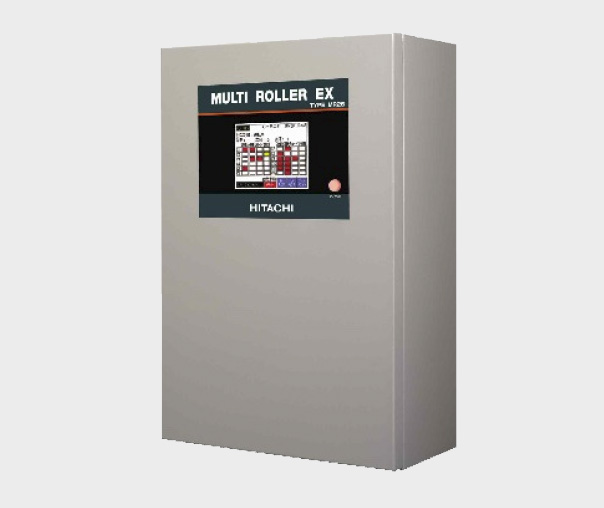

Hitachi Multi-Roller (Shimizu)
Multi-Unit Controller for Hitachi Compressor
To equalizing the operation hours for compressors
Able to control from 1 – 12 units
Able to perform Rotary Control, Loop Control, Turn-Back Control
Color Touch Screen Panel
