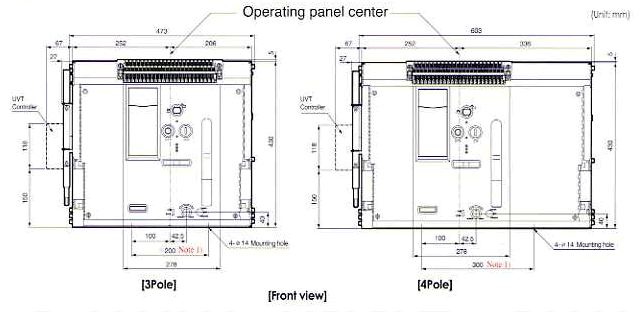

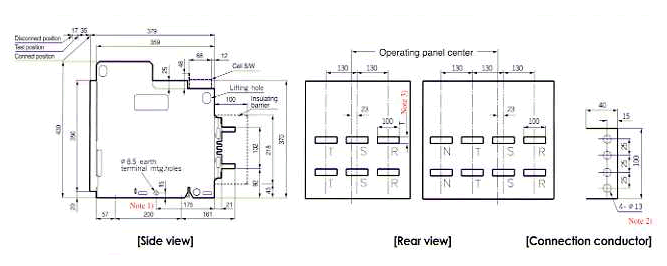

Air Circuit Breakers : External dimensions : Horizontal terminal type (2000-3200A)

Note

*1

Size of mounting hole

*2

Size of connection conductor of ACB

*3

Please refer to "T" dimension in 35 page.

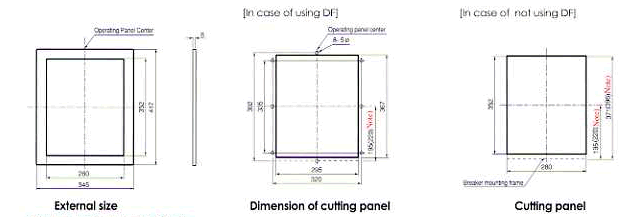

Door Frame (DF) : (2000-3200A, 4000-5000A/3,4Pole)

Note

*

(   ) value is for 4000 … 5000A / 3, 4pole type.
